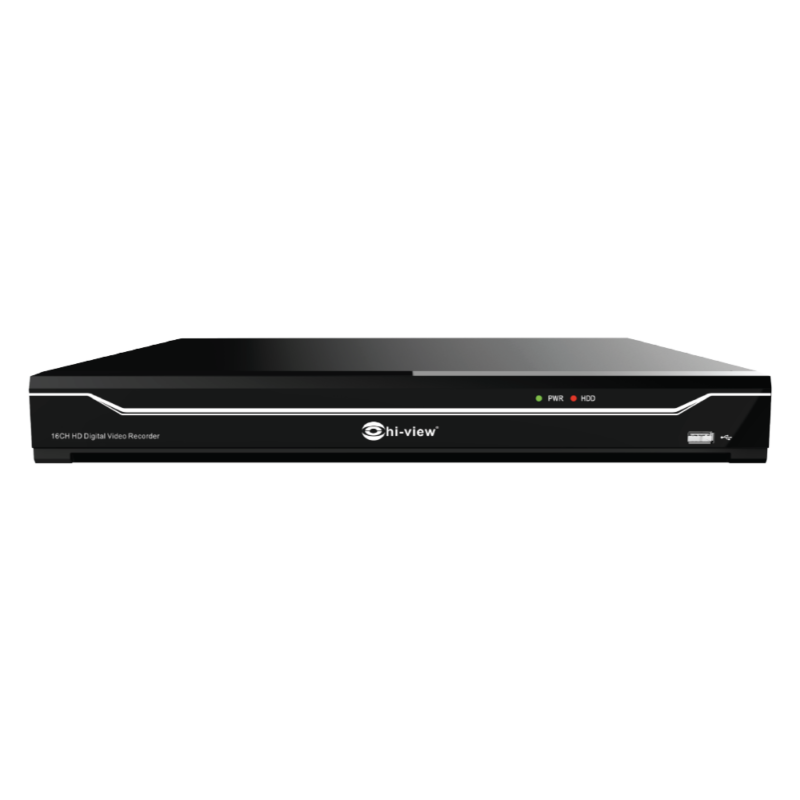

HA-75516H2-AI Analog video-input 16CH inputs

หมวดหมู่:

คำอธิบาย

  • Analog video-input 16CH inputs
  • IP Video Input 4ch,(only IP up to 20ch)
  • Composite Video Input up to 20ch (Analog video + IP video)
  • Compression Audio: G.711a Video: H.264/H.265
  • Playback 5MPlite:96fps Max 8CH playback 4MPlite: 128fps Max 8CH playback 1080P: 120fps Max 8CH playback 720P:240fps Max 8CH playback
  • AI YES / RS485 1
  • Ethernet 1 RJ45 100/1000 Base-T
  • USB2.0*1(front), USB3.0*1+(rear)
  • Audio 16 in/1 out (4in1 out optional,)
  • HDD 2 SATA HDD, up to 8TB
  • Alarm Input/out 16 in/1 out optional
  • Input Voltage/Current 1HDD: DC12V/2A
  • 2HDD:DC12V/5A
